PetSafe Freedom Aluminum Dog Door and Cat Door: Complete Guide

What if the door you install for your dog becomes the easiest entry point for an intruder? It's a legitimate concern — but the PetSafe Freedom aluminum dog door was engineered specifically to address it, pairing a heavy-duty extruded aluminum frame with a tight-sealing dual-flap system that resists both weather and unauthorized access. If you're still evaluating your options, our complete dog doors buying guide provides side-by-side comparisons to help you make a fully informed decision before you commit.

The PetSafe Freedom line accommodates animals from small cats all the way up to large breeds exceeding 100 pounds, and its aluminum frame resists the warping, cracking, and fading that plastic alternatives develop after a few seasons of UV exposure and temperature swings. According to Wikipedia's overview of pet door development, aluminum-framed doors have set the durability benchmark for residential installations for decades — and the Freedom series continues that tradition with meaningful refinements in insulation and locking hardware.

This guide takes you through every stage of ownership: understanding what you're buying, gathering the right tools, completing the installation cleanly, avoiding the errors that create security gaps, knowing when this door is the right call, and keeping it performing well for years. Read through in order and you'll have everything you need to get this right the first time.

What Makes the PetSafe Freedom Aluminum Dog Door Stand Out

Construction and Materials

The frame on the PetSafe Freedom is formed from extruded aluminum rather than injection-molded plastic, which gives it a rigidity and longevity that budget alternatives cannot match across multiple years of daily use. The dual-flap design is the product's most important technical feature — two overlapping vinyl flaps create an insulating air pocket between them that blocks drafts in winter, resists heat transfer in summer, and forms a physical barrier that a single-flap door cannot provide. The combination of aluminum framing and dual-panel sealing puts this door in a category above most residential pet door options at its price point. The included locking cover — a rigid insert that slides in from the top to block the opening entirely — adds a layer of security that cheaper products treat as an optional upgrade rather than a standard inclusion.

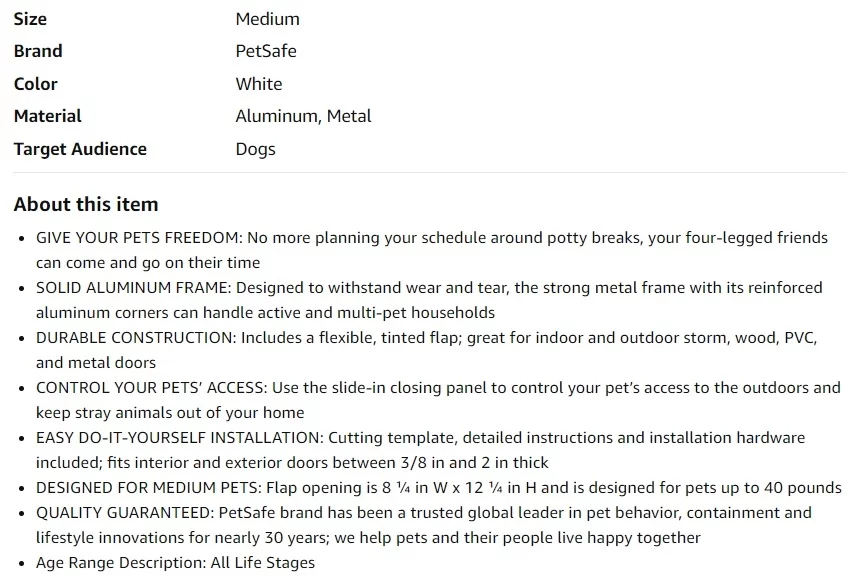

Size Options at a Glance

PetSafe manufactures the Freedom in four distinct sizes, each with a specific flap opening and a recommended weight range for the animals using it. The table below gives you the specifications you need to make the right choice before purchasing.

When your dog's measurements place it right at the boundary between two sizes, always select the larger option — a door with slightly more clearance is far preferable to one your dog forces through uncomfortably or avoids using altogether.

What You Need Before You Begin

Measuring Your Pet for the Right Fit

Measure your dog at two points: shoulder height (from the floor to the top of the shoulder blade while standing) and body width at the widest point, which is usually the chest or hips depending on the breed. Add approximately two inches to each measurement to arrive at the minimum flap opening you need. These dimensions correspond to the flap itself — the hole you cut into your door will be larger to accommodate the frame surround, and the included template handles that math for you precisely.

Tools Required for the Job

You don't need professional-grade equipment for this project, but having the right tools on hand before you start prevents the delays that lead to rushed cuts and imprecise installations.

• Jigsaw or reciprocating saw for the cutout; drill with spade and standard bits for starter holes
• Tape measure, carpenter's square, and pencil for accurate layout
• Phillips and flathead screwdrivers; caulk gun with weatherproof silicone sealant
• Safety glasses, dust mask, and a stud finder if installing through a wall

If you're cutting through a wall rather than a hollow-core or solid exterior door, budget extra time for locating framing members and verifying the wall cavity is free of wiring or plumbing before the saw touches drywall.

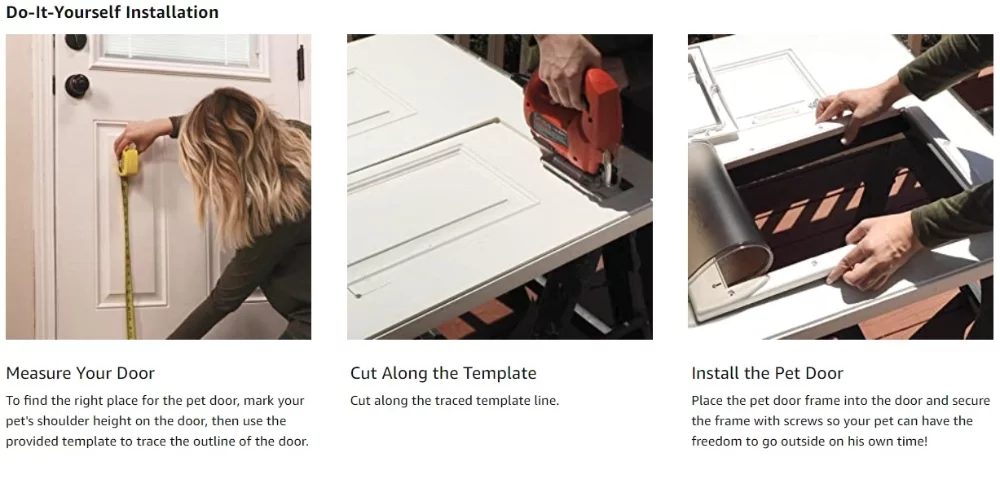

How to Install the PetSafe Freedom Aluminum Dog Door

Installing in an Exterior Door

Position the cardboard template at the correct height on your door — the bottom of the flap opening should sit two to four inches above the floor, which prevents the flap from dragging on carpet or catching on thresholds during use. Tape the template firmly in place, confirm it's level with a torpedo level, and trace the cutout boundary with a sharp pencil. Drill a starter hole inside one corner of the marked area, then follow the traced line with your jigsaw at a steady, controlled pace.

Once the cutout is clean, dry-fit both frame halves before applying any sealant — this step confirms the flap swings freely and the frame seats flush against both door faces before you commit to the final installation. Slide the inner and outer frames into position, thread the mounting bolts through the pre-drilled holes, and tighten the nuts evenly until the frame is firm and gap-free. Run a bead of weatherproof silicone sealant around the outer frame perimeter, smooth it flat, and allow it to cure fully before the door sees rain or heavy use.

Installing Through a Wall

Wall installation requires an extension tunnel — sold separately from PetSafe — to bridge the inner and outer frames across the wall's full thickness. Use a stud finder before marking your cutout and plan your opening to fall between framing members wherever possible, since cutting through a structural stud requires a header and cripple stud modification that moves the project into basic carpentry territory. Once the tunnel is in place and both frame faces are mounted, seal both perimeter joints with silicone and apply an exterior trim kit that matches your siding profile to prevent water infiltration at the outer frame joint.

Installation Errors That Create Security Gaps

Getting the Size Wrong

The most common purchase mistake is selecting a size based on your dog's listed weight rather than its actual physical measurements. A lean 50-pound dog and a barrel-chested 50-pound dog need different flap openings, and weight ranges are published as rough guides rather than precise specifications. Measure the animal directly every time, and if your dog is still growing, size for its projected adult dimensions rather than what it needs today — replacing a correctly installed door because the dog outgrew it within a year is an avoidable expense and an unnecessary hole in your exterior wall.

Overlooking the Locking Panel

The rigid locking cover that ships with every PetSafe Freedom door is a security feature, not a decorative accessory. Leaving the flap uncovered when the house is empty creates an unmonitored opening that undermines whatever other access controls you have in place. If you're pairing this installation with upgraded door hardware — as you should for any exterior entry point — the Medeco Maxum deadbolt review and the Kwikset SmartCode 913 guide cover two strong options that complement the physical security the locking panel provides. Avoid positioning the cutout directly beside the door handle — a determined intruder with sufficient reach can unlatch a standard lever handle through a large flap opening, so distance from the hardware is a meaningful deterrent.

When This Dog Door Is the Right Choice — and When It's Not

Best Situations for the PetSafe Freedom

This door performs best in homes with a fenced rear yard, where it provides genuine daily convenience without significantly expanding your home's attack surface. If you've already invested in perimeter measures like a privacy hedge or a solid fence line, the dog door adds pet independence without meaningfully increasing risk. Homes in temperate to moderately cold climates also benefit most from the dual-flap insulation system — the reduction in drafts and conditioned air loss is measurable across a full heating season and offsets a portion of the door's cost over time.

For pet owners who want to combine the new installation with structured pet behavior, the techniques covered in our Jack Russell Terrier guard dog training guide apply broadly to teaching smaller and medium breeds to use a new flap confidently rather than reluctantly, which accelerates the adjustment period from weeks to days.

When You Should Consider Alternatives

If your home faces persistent extreme cold — below-zero temperatures for extended stretches — the dual-flap seal on the PetSafe Freedom, while effective, falls short of the insulation provided by electronic pet doors with hard magnetic closures or motorized panels. Similarly, if your door faces a public walkway or street rather than a private fenced yard, the security trade-off shifts enough that an electronic door with a collar-activated sensor gives you materially better control over access. In those scenarios, the PetSafe Freedom remains a solid product — it's simply not the optimal tool for that specific environment.

Keeping Your Installation Secure and Functional for the Long Term

Routine Maintenance

The vinyl flaps on the PetSafe Freedom hold up well under normal use, but seasonal temperature cycling and UV exposure cause gradual stiffening and cracking at the flap edges over time. Inspect the flaps at each change of season — pay attention to the magnetic strip at the bottom edge, which loses its sealing strength as the vinyl ages and hardens around it. Replacement flap kits are available directly from PetSafe and require no tools to install, making this a five-minute maintenance task that restores full weather resistance and security performance immediately. Clean the aluminum frame and flap surfaces periodically with mild soap and water, and reapply silicone sealant around the outer frame wherever you notice cracking or separation from the door surface.

Layering Additional Security

A pet door, by its nature, is an opening in your exterior envelope — and no single product eliminates the vulnerability that represents entirely. The most effective approach treats the PetSafe Freedom as one layer within a broader system that includes motion-activated exterior lighting, a monitored alarm sensor on the door the pet door is installed in, and the locking panel engaged whenever the home is unoccupied. Many of the same principles that inform good pet door security — controlling access points, verifying hardware integrity, building layered defenses — are covered in depth in our guide to child window safety, which applies the same systematic thinking to a different set of home entry points.

Frequently Asked Questions

Final Thoughts

The PetSafe Freedom aluminum dog door rewards careful preparation — measure your pet accurately, review the size chart, confirm your installation environment, and engage the locking panel as part of your daily routine. If you're ready to move forward with a purchase or want to compare it against other options before deciding, visit our dog doors buying guide for detailed comparisons that help you choose the right door for your specific home and security requirements.
